CNC Advantages
Why Precision Mold Making Matters
Complex Contour Machining
Fine Detail Reproduction
Stable Dimensional Control
Custom Mold Development
Our CNC machine tools
Jingdiao CNC Machining for Detailed Mold Production
COMPLETE MOLD DEVELOPMENT WORKFLOW
From Your Drawing to
a Production-Ready Mold
A clear, step-by-step process from design review and tooling development to machining, inspection, trial production, and mass production.
1. Design Review & Structure Optimization
Review 2D drawings, 3D files, logos, samples, or sketches. Confirm dimensions and manufacturability.
2. Mold and Tooling Design
Plan parting lines, cavities, gates, positioning features, and machining allowance.
3. CNC Programming
Convert the 3D model into machining toolpaths. Define tools, machining sequence, feed settings, and finishing strategy.

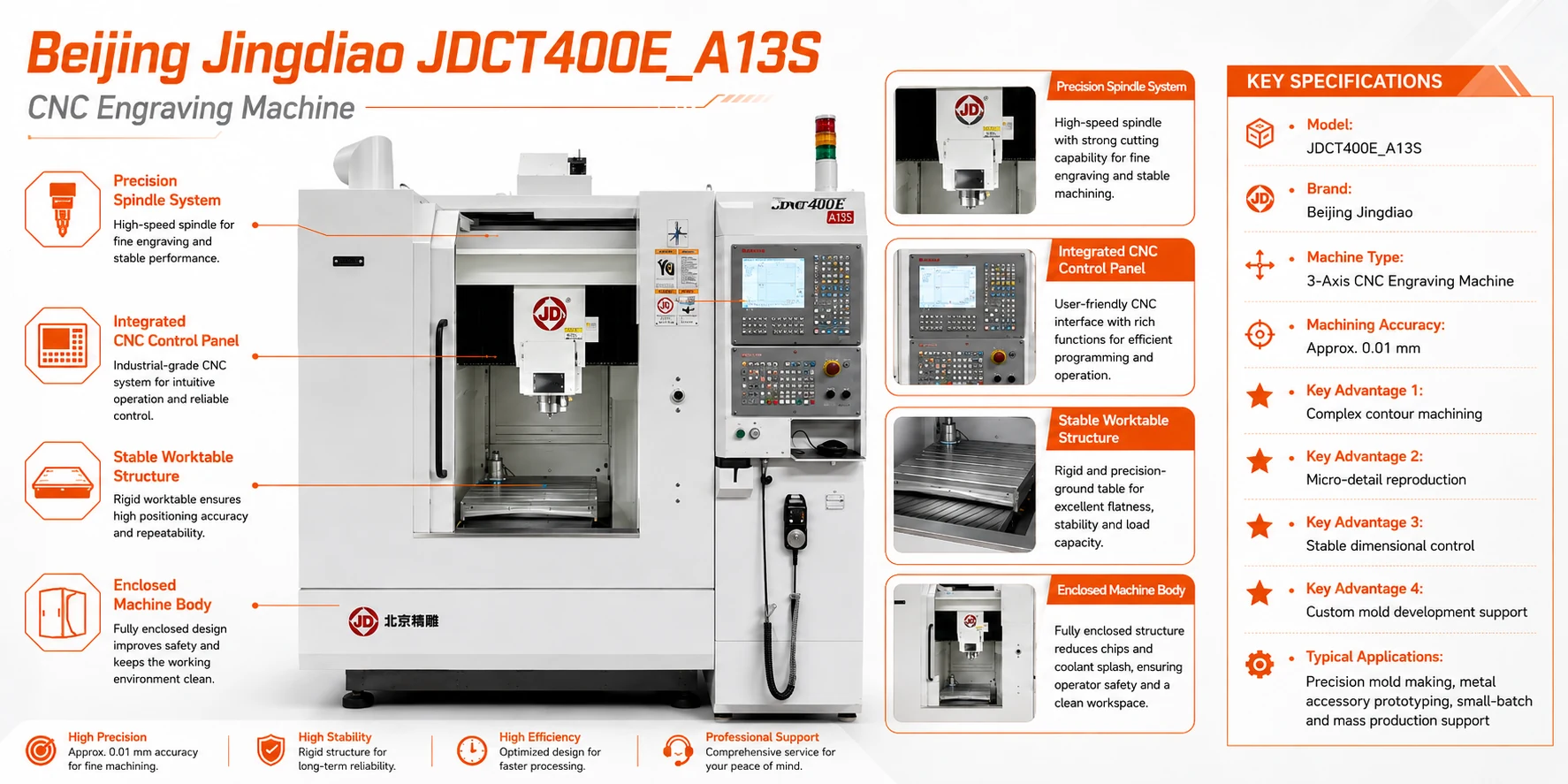

4. Jingdiao CNC Machining
Use a Beijing Jingdiao 3-axis CNC machining center for rough machining, semi-finishing, and precision finishing.
5. Inspection and Adjustment
Check cavity dimensions, depth, contours, hole locations, and critical fit points. Adjust when necessary.
6. Trial Production
Produce first samples to verify forming quality, detail reproduction, and assembly fit.
7. Mold Approval and Mass Production
After sample approval, the mold is released for stable mass production.
RECOMMENDED PRODUCTS
Recommended Products for Precision CNC Mold Making

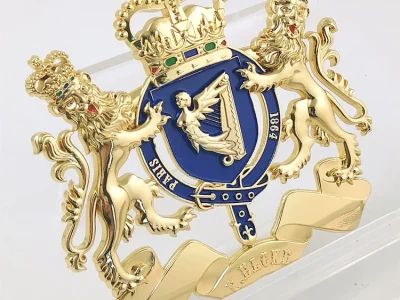

Soft enamel detail
Hidden magnet backing
Ideal for museums & souvenir shops
Embossed relief
Multiple attachments
For fashion, automotive & packaging

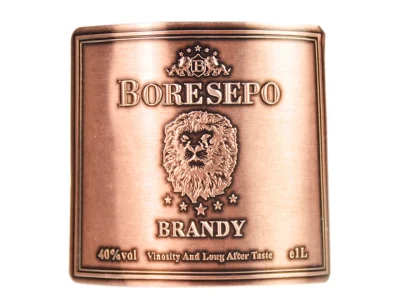

Embossed lion crest
Self-adhesive curved label
Ideal for wine & spirits packaging
FAQ
Frequently Asked Questions About
Need project advice?
Add Your Heading TeOur team can review your drawing and recommend the right mold-making approach for your metal accessory project.xt Here
Drawing review
Structure optimization
Mass-production support
01. What files do you need to start CNC mold making?
We can start from 2D drawings, 3D files, logos, samples, or even a sketch. Our team reviews the structure, dimensions, and manufacturability before tooling begins.
02. Can you help optimize my design before tooling?
Yes. We can adjust details such as parting lines, cavities, fit points, and mold structure to improve production stability and detail reproduction.
03. What accuracy can you achieve in mold machining?
We use a Beijing Jingdiao 3-axis CNC machining center, and practical mold machining accuracy can reach around 0.01 mm for detailed accessory molds.
04. How long does CNC mold development usually take?
Lead time depends on the size and complexity of the mold. After reviewing your project, we provide a clear schedule for design, machining, inspection, and trial production.
05. Do you provide sample validation before mass production?
Yes. We run trial production to check forming quality, detail reproduction, and assembly fit before final mold approval and mass production.
06. What products can be made with this process?
This process is suitable for custom metal tags, emblems, charms, bottle badges, decorative labels, and other precision metal accessories for fragrance, beauty, beverage, and fashion brands.
